JINXINYANG heat press machine Leather Embossing Foil Gold stamping Hot pressing Mold cutting Rhombus punching Branding Wood

UGX1,311,633UGX2,060,409

Clear
  Ask a Question
Welcome, thank you for choosing: JINXINYANG
Our company mainly produces:hot stamping machine, copper mold,
hot stamping foil. If you have any questions, please contact us directly.
When you have paid the order,
we will match the voltage and plug according to the receiving address.

 (01)
           Important Information

Suitable material:
Leather/Plastic /Pu/Pvc/ Paper/Flannel/Business card/Wood/Insole/Bamboo.
Material style:
The material of gilding stamping needs to satisfy: flat and smooth.
The material of hot pressing/branding need meet: flat with elasticity.
The material of mold cutting/punching/rhombus punching need meet: flat and
thickness less than 5 mm.
Material size:
The thickness of the material is less than 16cm,
and if it is greater than 16cm,It needs to be customized for use!
Length * width ≤ 18*18cm,can be printed in the middle of the material;
length * width  > 18*18cm,can't be printed in the middle of the material.
Because the machine stanchion will block the material.

             Function​​al Examples
 (02)
              Product Ad​​vantages


Workbench with scale line:
Locating materials are easier.
04
The Heating plate removable:
Install punching tools.
05
Digital temperature controller:
Visual, accurate and easy to adjust.
06
              Product Parameters


Product name: Multifunctional Hot Press Machine  (JXY-SD160B)

Machine function: Gold stamping+Hot pressing+Branding+Punching

Net weight:8KG

Gross weight:10KG

Machine size:About 23*23*45cm

Packaging size:About 28*28*48cm

Optional voltage: 220V/110V

heating area/power:5*7cm/300W;8*10cm/500W;10*13cm/600W

Temperature range: 0~400℃

Pressure:≤160KG

Stamping thickness:0~16cm

Optional plug:China plug/American plug/British plug /European plug

Suitable material:Leather/Wood/Plastic /Pu/ Paper/Flannelette/Bamboo.

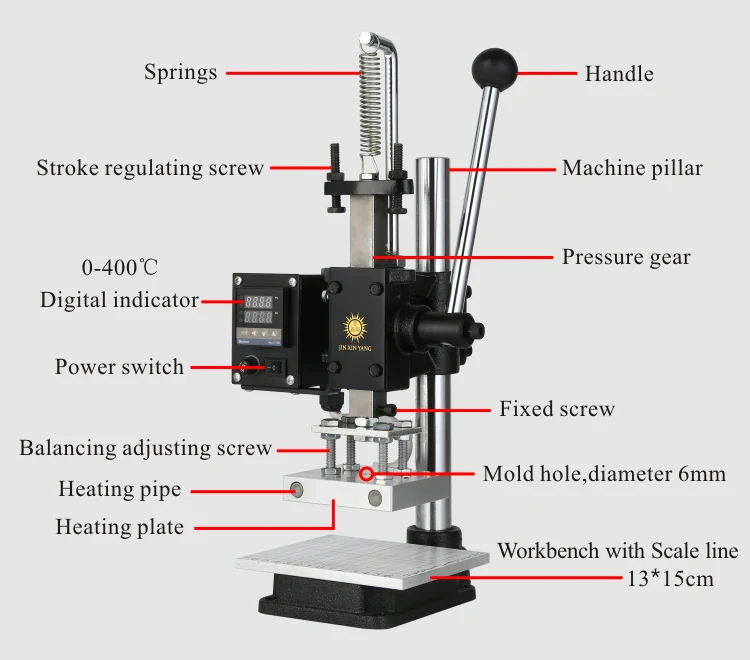

               Product Structure
08
                   Product Photos
0910

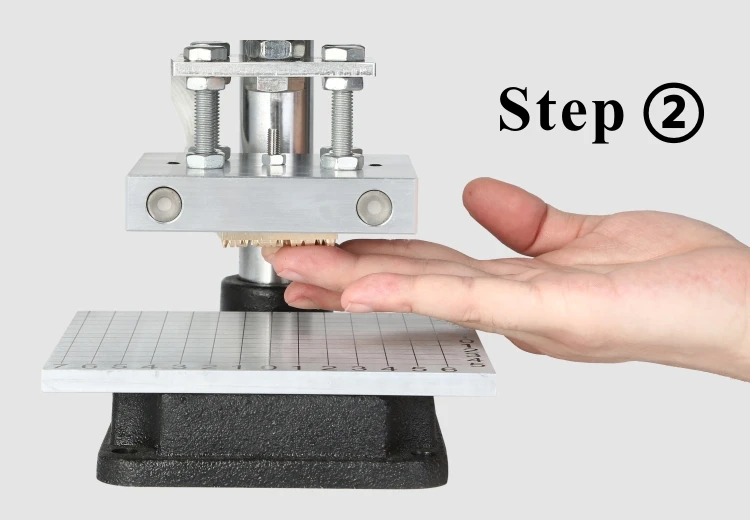

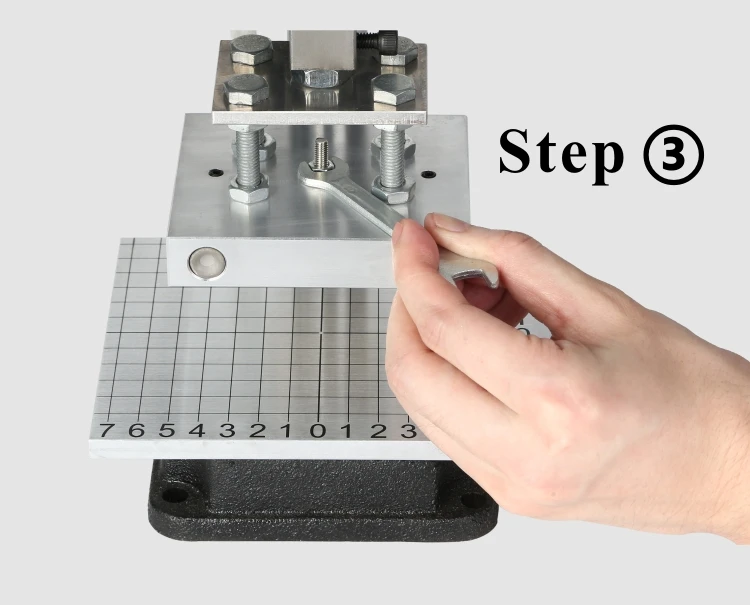

                 Install The Mold
111213
                   Product Detail
14

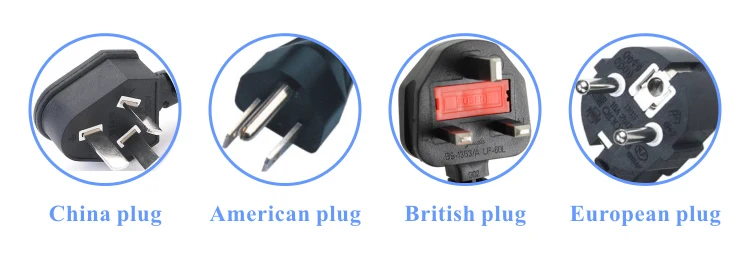

                      Plug Styles
15
                    ​​Packing List
16
        Add And Buy parts, Upgrade Function
Foil holder
Use: Hang gold foils, improve efficiency
Hint: Gold foils need additional buy.
17
Heat conductor
Use: Internal position of hot stamping
18
Lifting table
Use: Hollow position of hot stamping

19
Drill chuck
Use: install punching tool
Hint: Punching tools need additional buy.
20
Backing board
Use: Protection the surface of cutting mold
21
                    Our Factory
22
             Product Certification
18
                Warranty Period

1.Lifelong free maintenance and maintenance;
2.Temperature controller/sensor warranty for 6 months.
3.Heat pipe belongs to loss piece, the higher the temperature,
the shorter the service life of heat pipe.
4.It is suggested to buy heating pipe for backup, you can replace it by yourself.
5.When using a temperature of 150 ℃ or less,  heat pipe warranty for six months.
6.When using 150-250 ℃ temperature, heat pipe  warranty for 3 months.
7.When using the temperature 250-400 ℃,  heat pipe  warranty for 1 months.
